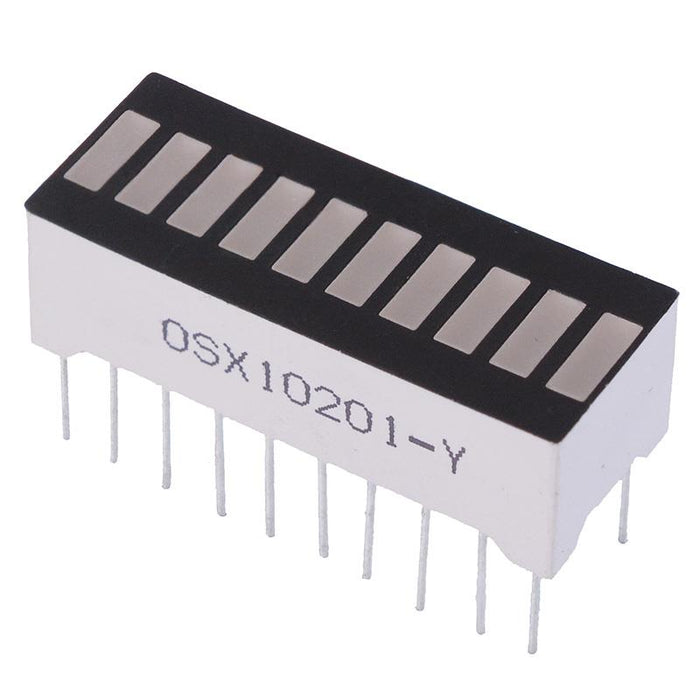

Yellow 10-Segment LED Bar Array Display
by OptoSupply
SKU 485648
MPN: OSX10201-Y
Availability:
56 in stock
Original price
£1.38
-
Original price
£1.38
Original price
£1.38
Inc VAT
£1.38
-
£1.38
Current price
£1.38
Inc VAT
Yellow 10 segment LED bar array featuring excellent visibility and contrast. The LEDs provide a consistent brightness throughout the display and feature a long life making them suitable for counting and clock applications.
Yellow LED White bar on a black face Can be end stacked to form longer lengths Bar size: 5.0 x 1.74mm Low current Dimensions: 25.5 x 10.2 x 7.9mm
Specification
| Back order lead time | 45 Days |
| Colour | Yellow |
| Depth | 10.2mm |
| Forward current | 25mA |
| Forward voltage | 2.1V |
| Height | 7.9mm |
| Lens colour | White Diffused |
| Luminous intensity | 133mcd |
| Mounting style | Through Hole |
| Number of pins | 20 |
| Operating temperature | -30°C to +70°C |
| Package | 25.5 x 10.2mm |
| Packaging | Bulk |
| Power dissipation | 62.5mW |
| Wavelength | 587nm |
| Width | 25.5mm |
