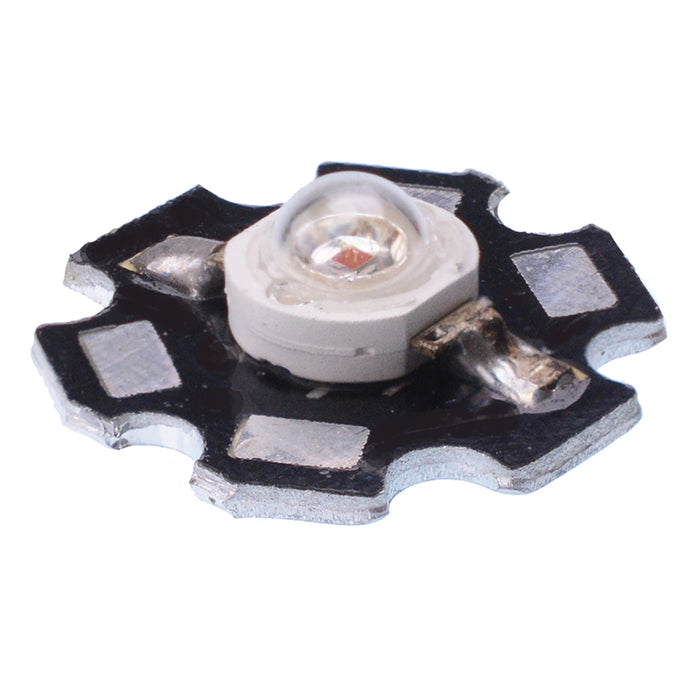

Yellow 1W High Power Star LED 50lm 120°
SKU 311441
MPN: TY-HP1UY-S
Availability:
470 in stock
Original price
£1.00
-
Original price
£1.00
Original price
£1.00
£1.00
£1.00
-
£1.00
Current price
£1.00
Yellow high power 1W LEDs featuring a high luminous flux and excellent energy efficiency. The LEDs feature a wide viewing angle and are mounted on a heatsink to dissipate heat. The LEDs are suitable for a range of applications including backlighting, illumination, indication etc.
Luminous flux: 50lm Wavelength: 590nm Viewing angle: 120° Forward voltage: 2.2V Forward current: 350mA Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow |
| Forward Current | 350mA |
| Forward Voltage | 2.2V |
| Lens Colour | Clear |
| Lens Shape | Dome |
| Luminous Flux | 50lm |
| Luminous Intensity | 50lm |
| MOQ | 1 |
| Mounting Style | Surface Mount |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +85°C |
| Package | PCB Substrate |
| Packaging | Bulk |
| Power Dissipation | 1W |
| Power Rating | 1W |
| Viewing Angle | 120° |
| Wavelength | 590nm |
