Yellow 3mm Multi-Voltage (3-15V) LED Kit - Box of 50
by OptoSupply
SKU 486690
MPN: OKLEDT3050Y5
Availability:
Out of stock
Sold out
Original price
£6.75
-
Original price
£6.75
Original price
£6.75
£6.75
-
£6.75
Current price
£6.75

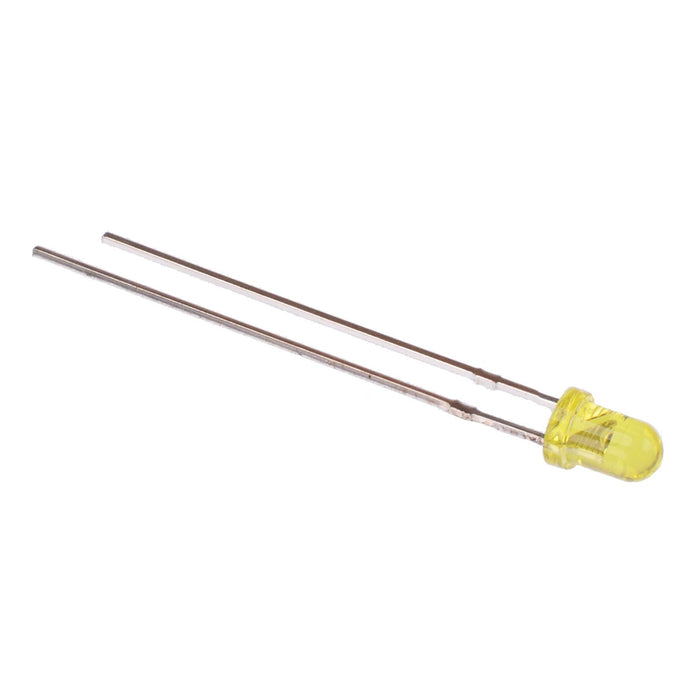

Yellow 3mm universal LED lamps featuring a yellow lens complete in a handy box. The LEDs feature a built-in resistor allowing them to be used with a 3-15V input voltage range, not only does this save on cost but also space and time by not having to install an additional resistor. The LEDs are widely used for indication applications and with microcontrollers including Arduino, Raspberry Pi etc.

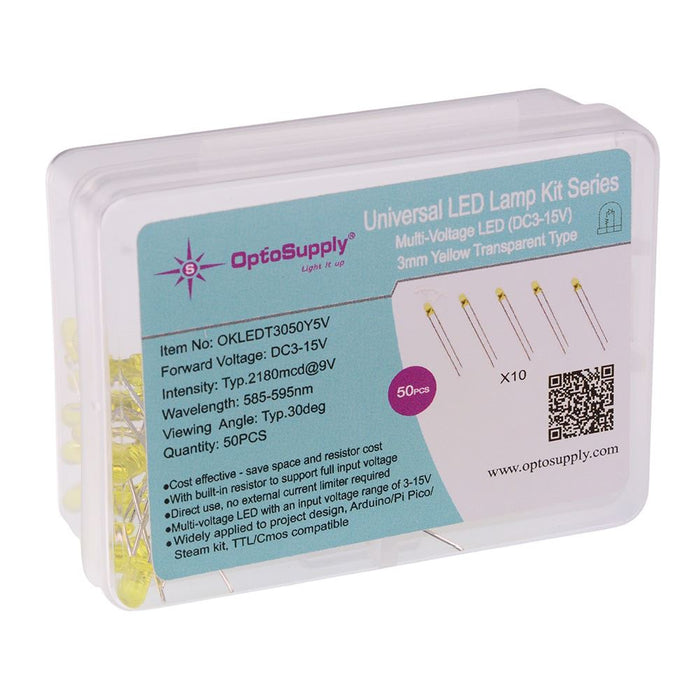

Box of 50 LEDs
Yellow transparent lens
3mm package with 2.54mm lead pitch
Input voltage: 3-15VDC
Built-in resistor
Viewing angle: 30deg
Wavelength: 585-595nm
Luminous intensity: 2180mcd @ 9V
Specification
| Back Order Lead Time | 45 Days |
| Colour | Yellow |
| Diameter | 3mm |
| Forward Current | 8mA |
| Forward Voltage | 3-15V |
| Lens Colour | Yellow |
| Lens Shape | Round |
| Luminous Intensity | 2180mcd |
| Mode | Constant |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -30°C to 85°C |
| Package | 3mm |
| Packaging | Box |
| Viewing Angle | 30° |
| Wavelength | 585-595nm |
