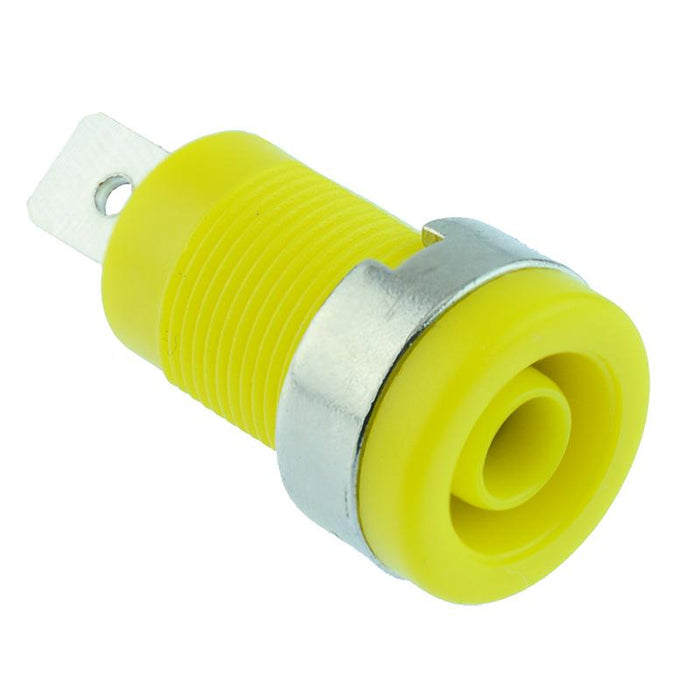

Yellow 4mm Shrouded Test Socket
SKU 356052
MPN: 356052
Availability:
48 in stock
Original price
£0.79
-
Original price
£0.79
Original price
£0.79
£0.79
£0.79
-
£0.79
Current price
£0.79
Shrouded test sockets for 4mm diameter plugs and suitable for panel mounting.
6.3mm fast-on contacts Panel cut-out: 12mm Maximum voltage: 30VAC, 60VDC Maximum current: 36A Dimensions: 30.1 x 14.6mm (Length x Diameter)
Specification
| Back Order Lead Time | 40 Days |
| Colour | Yellow |
| Contact Material | Nickel Plated Copper |
| Current Rating | 36A |
| Housing Material | ABS |
| Mounting Type | Panel |
| Number of Poles | 1 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 12mm |
| Termination Method | Tab |
| Voltage Rating | 30VAC, 60VDC |
