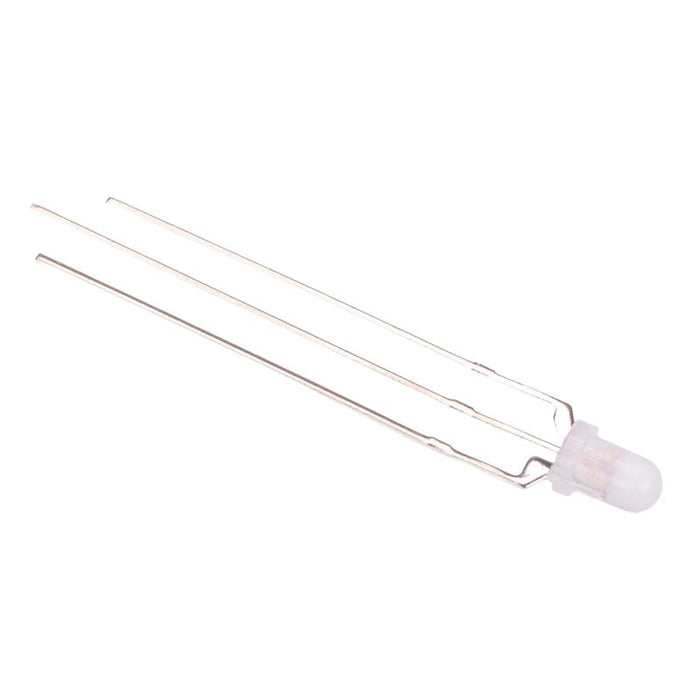

Yellow / Green 3mm Bi-Colour Diffused LED 60° Common Anode
by Luckylight
SKU 484902
MPN: 309YPGM2E-A-3C-G52B
Availability:
3366 in stock
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
£0.15
£0.15
-
£0.15
Current price
£0.15
Yellow / green 3mm bi-colour LED featuring a white diffused package with 3 leads connected in common anode. The LED is suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: yellow 890mcd, green 4500mcd Wavelength: yellow 590nm, green 525nm Viewing angle: 60° Forward voltage: yellow 2.0V, green 3.0V Forward current: 25mA Suitable for through-hole mounting 2.54mm lead pitch White diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow / Green |
| Diameter | 3mm |
| Forward Current | 25mA |
| Forward Voltage | Yellow 2.0V, Green 3.0V |
| Lens Colour | White |
| Lens Shape | Round |
| Luminous Intensity | Yellow 890mcd, Green 4500mcd |
| Mode | Constant |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | Yellow 60mW, Green 85mW |
| Viewing Angle | 60° |
| Wavelength | Yellow 590nm, Green 525nm |
