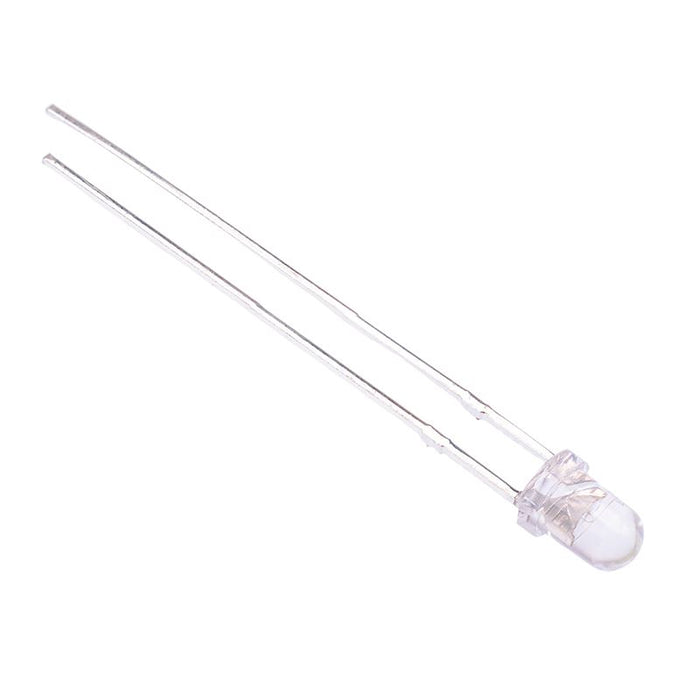

Yellow Green 3mm Water Clear LED 270mcd 30°
by Luckylight
SKU 484893
MPN: 304GC4B-1BD
Availability:
4530 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
Yellow green 3mm LED featuring a water clear package and 270mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 270mcd Wavelength: 571nm Viewing angle: 30° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Water clear lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 45 |
| Colour | Yellow Green |
| Diameter | 3mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Clear |
| Lens Shape | Round |
| Luminous Intensity | 270mcd |
| Mode | Constant |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +80°C |
| Package | 3mm |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Viewing Angle | 30° |
| Wavelength | 571nm |
