Yellow Green 5mm Concave Diffused LED 30mcd 120°
by Luckylight
SKU 484953
MPN: LL-503UGC2K-2B
Availability:
Out of stock
Sold out
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
£0.15
£0.15
-
£0.15
Current price
£0.15

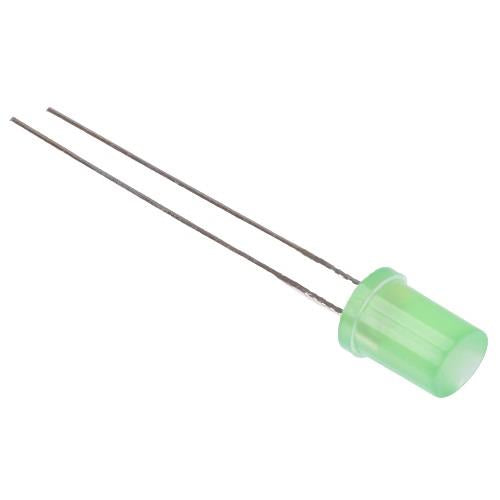

Yellow green 5mm concave LED featuring a colour diffused package and 30mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.
Luminous intensity: 30mcd Wavelength: 573nm Viewing angle: 120° Forward voltage: 2.0V Forward current: 25mA Suitable for through-hole mounting Cathode identified as the shorter lead 2.54mm lead pitch Colour diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 7 |
| Colour | Yellow Green |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | 2.0V |
| Lens Colour | Green |
| Lens Shape | Concave |
| Luminous Intensity | 30mcd |
| Mode | Constant |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Number of Pins | 2 |
| Operating Temperature | -40°C to +85°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | 65mW |
| Viewing Angle | 120° |
| Wavelength | 573nm |
