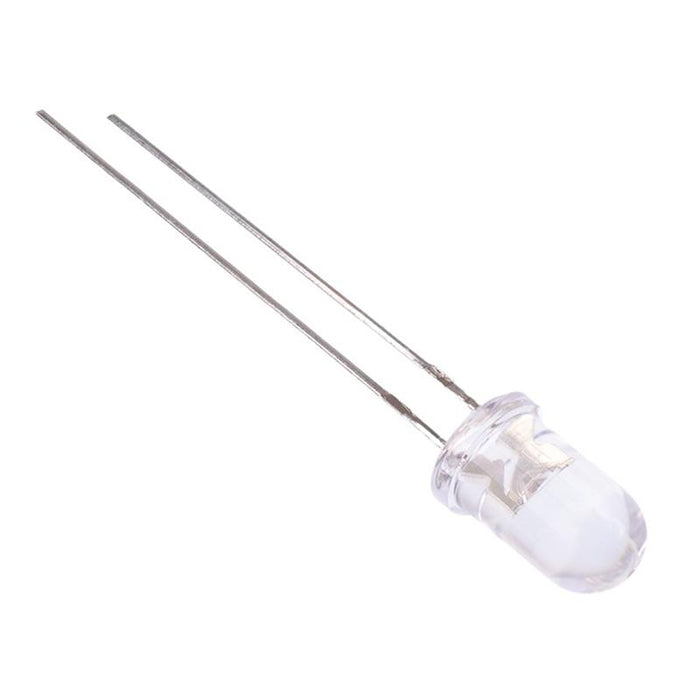

Yellow Green 5mm Water Clear LED 1500mcd 20°

SKU 484969

MPN: LL-503UGC2E-2BC

Availability:
398 in stock
Original price £0.13 - Original price £0.13
Original price £0.13
£0.13
£0.13 - £0.13
Current price £0.13
Yellow green 5mm LED featuring a clear lens and 1500mcd luminous intensity suitable for applications including use as indicators, backlighting and illumination.

  • Luminous intensity: 1500mcd
  • Wavelength: 573nm
  • Viewing angle: 20°
  • Forward voltage: 2.1V
  • Forward current: 50mA
  • Suitable for through-hole mounting
  • Cathode identified as the shorter lead
  • 2.54mm lead pitch
  • Clear lens
  • Excellent weather resistance
  • Long lifespan
  • Specification
    Back Order Lead Time 7
    Colour Yellow Green
    Diameter 5mm
    Forward Current 50mA
    Forward Voltage 2.1V
    Lens Colour Clear
    Lens Shape Round
    Luminous Intensity 1500mcd
    Mode Constant
    MOQ 10
    Mounting Style Through Hole
    Number of Pins 2
    Operating Temperature -40°C to +80°C
    Package 5mm
    Packaging Bulk
    Power Dissipation 100mA
    Viewing Angle 20°
    Wavelength 573nm
