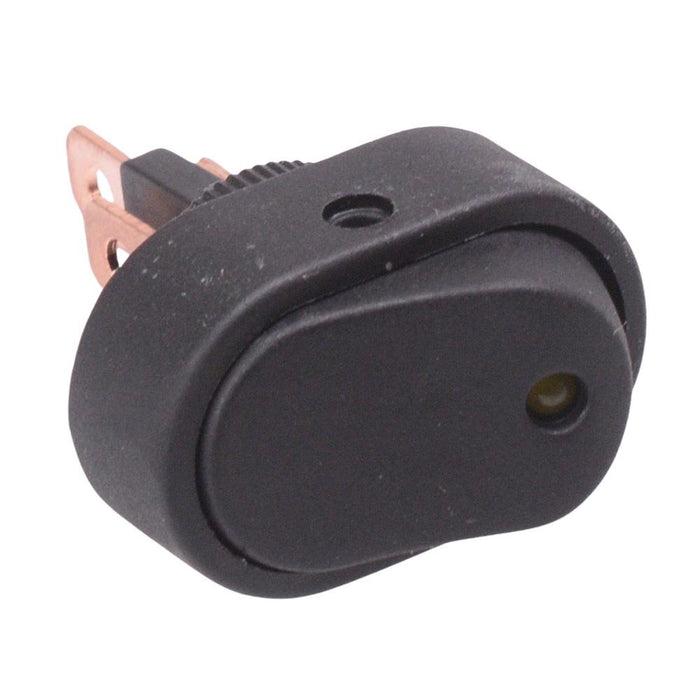

Yellow LED Oblong On-Off Rocker Switch 20A 12V
SKU 489749
MPN: ASW-20D Yellow 12V
Availability:
176 in stock
Original price
£1.43
-
Original price
£1.43
Original price
£1.43
£1.43
-
£1.43
Current price
£1.43
Yellow rocker switch housed in an oblong shape package, featuring SPST contacts and On-Off operation. The switch features 6.35mm quick connect terminals and 12V LED illumination, making it suitable for automotive applications.
Yellow 12V illumination On-Off operation SPST contacts Rating: 20A 12V 6.35mm quick connect terminals Panel cut-out: 12mm Dimensions: 43.7 x 31 x 19.5mm (height x length x width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Colour | Yellow |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A @ 12VDC |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12VDC |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
