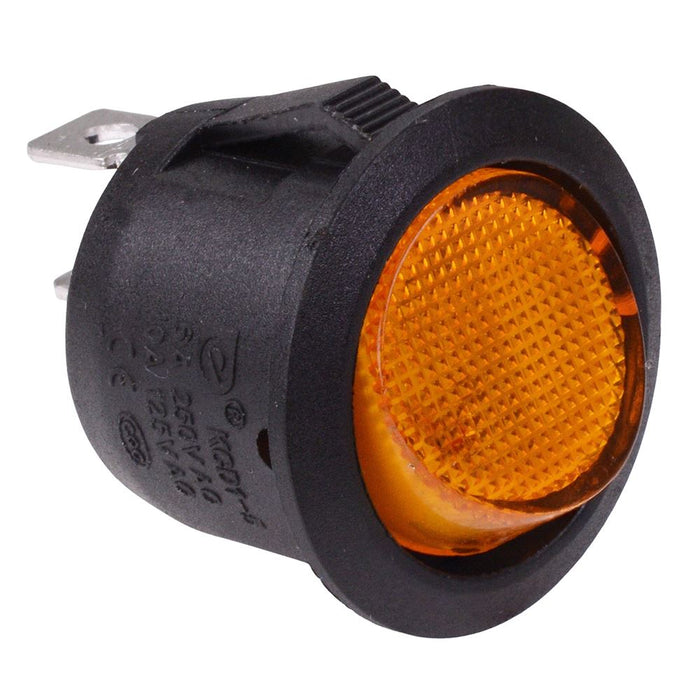

Yellow On-Off 12V illuminated Circular Rocker Switch SPST 10A
SKU 488315
MPN: 488315
Availability:
245 in stock
Original price
£0.72
-
Original price
£0.72
Original price
£0.72
£0.72
£0.72
-
£0.72
Current price
£0.72
Round rocker switch featuring 12V yellow illumination and SPST contacts. The switch features 4.8mm quick connect terminals and requires a 20mm panel cut-out, suitable for a wide range of applications including automotive.
Yellow 12V illumination On-Off operation SPST contacts 4.8mm quick connect terminals Rating: 6A 250VAC, 10A 125VAC Panel cut-out: 20mm Dimensions: 29.2 x 23mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Yellow |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
