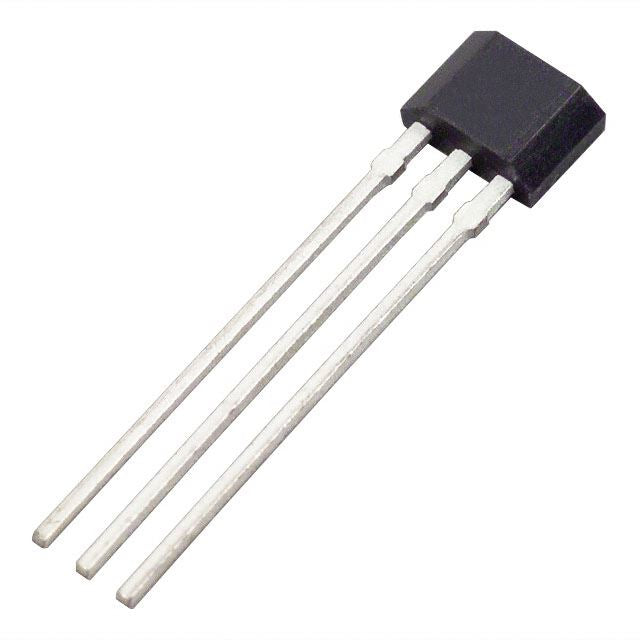

ZTX450 Transistor NPN 45V Medium Power Transistor

ZTX450 Transistor NPN 45V Medium Power Transistor

by Diodes Zetex
SKU 551623

MPN: ZTX450

Availability:
Only 1 left!
£1.25 - £1.25
£1.25
£1.25
£1.25 - £1.25
£1.25

The ZTX450 transistor is a 45V silicon NPN medium power transistor with planar construction. Supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.

  • 1A continuous current
  • NPN Small signal transistor
  • Collector Base Voltage 60V
  • NPN Silicon Planar Medium Power Transistor
  • 45V 1A TO-92
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 5
    Collector Base Voltage 60V
    Collector Current 1A
    Collector Emitter Saturation Voltage 250mV
    Collector Emitter Voltage 45V
    DC Current Gain 100
    Maximum Operating Temperature 200°C
    MOQ 1
    Mounting Type Through Hole
    Package TO92
    Power Dissipation 1W
    Transistion Frequency 150MHz
    Type NPN
