ZTX451 Transistor NPN 60V Medium Power Transistor
by Diodes Zetex
SKU 551624
MPN: ZTX451
Availability:
55 in stock
Original price
£1.16
-
Original price
£1.16
Original price
£1.16
£1.16
£1.16
-
£1.16
Current price
£1.16

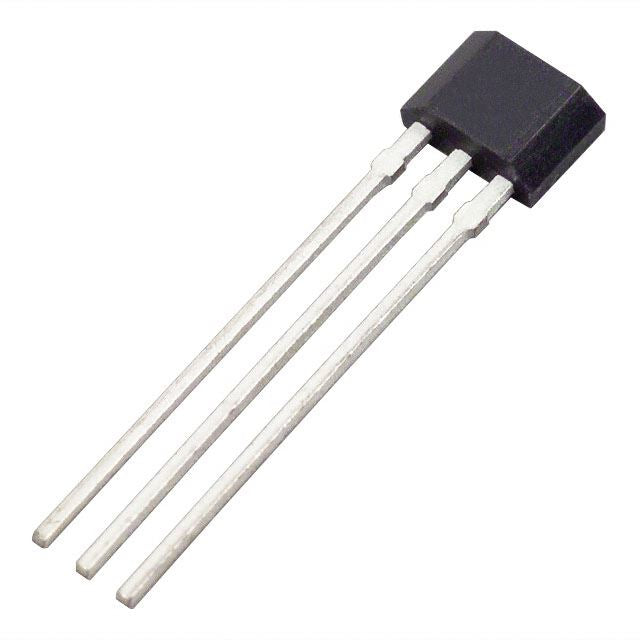

The ZTX451 transistor is a 60V silicon NPN medium power transistor with planar construction. Supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.
Specification
| Back Order Lead Time | 5 |
| Collector Base Voltage | 80V |
| Collector Current | 1A |
| Collector Emitter Saturation Voltage | 350mV |
| Collector Emitter Voltage | 60V |
| DC Current Gain | 50 |
| Maximum Operating Temperature | 200°C |
| MOQ | 1 |
| Mounting Type | Through Hole |
| Package | TO92 |
| Power Dissipation | 1W |
| Transistion Frequency | 150MHz |
| Type | NPN |
