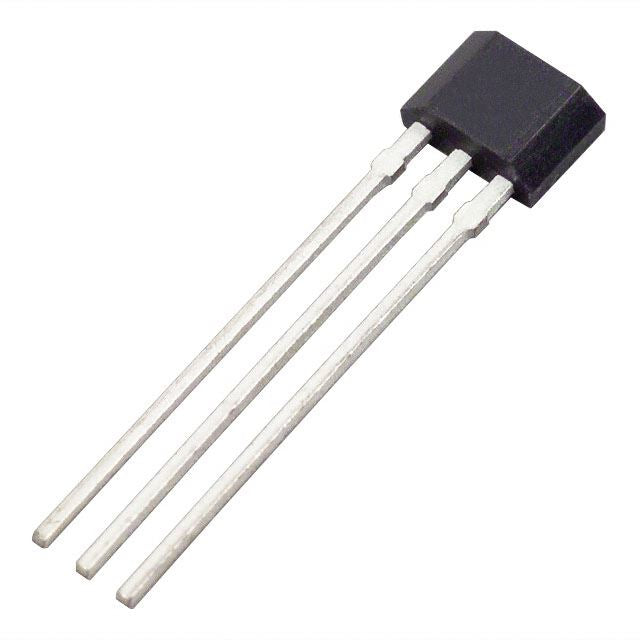

ZTX605 Transistor NPN Darl 120V Medium Power Transistor
by Diodes Zetex
SKU 551626
MPN: ZTX605
Availability:
100 in stock
Original price
£2.48
-
Original price
£2.48
Original price
£2.48
Inc VAT
£2.48
-
£2.48
Current price
£2.48
Inc VAT
The ZTX605 transistor is a 120V silicon NPN medium power darlington transistor with planar construction. Supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.
Specification
| Back order lead time | 5 Days |
| Collector base voltage | 140V |
| Collector current | 1A |
| Collector emitter saturation voltage | 1.5V |
| Collector emitter voltage | 120V |
| Dc current gain | 2000 |
| Maximum operating temperature | 200°C |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 1W |
| Transistion frequency | 150MHz |
| Type | NPN |
