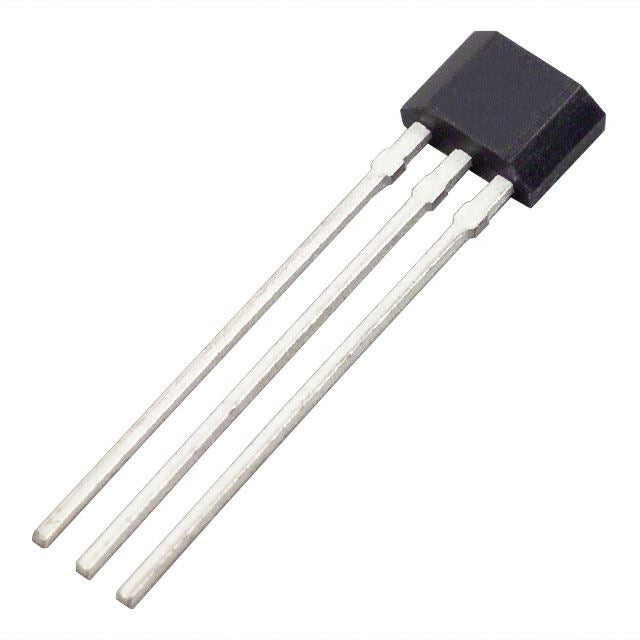

ZVN2110A MOSFET 100V 320mA N-Channel TO-92 Transistor
by Diodes Zetex
SKU 551632
MPN: ZVN2110A
Availability:
Out of stock
Sold out
Original price
£1.32
-
Original price
£1.32
Original price
£1.32
Inc VAT
£1.32
-
£1.32
Current price
£1.32
Inc VAT
The ZVN2110A MOSFET Transistor is a 100V N-channel through hole resistor supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.
- 100 Volt VDS
- RDS(on) < 4Ohm
- N Channel Enhancement Mode Vertical DMOS FET
- MOSFET 100V 320mA TO-92
Specification
| Back order lead time | 5 Days |
| Continuous drain current | 0.32A |
| Drain source on resistance | 4Ω |
| Drain source voltage | 100V |
| Input capacitance | 75pF |
| Maximum gate source voltage | 2.4V |
| Maximum operating temperature | 150°C |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 0.7W |
| Type | N-Channel |
