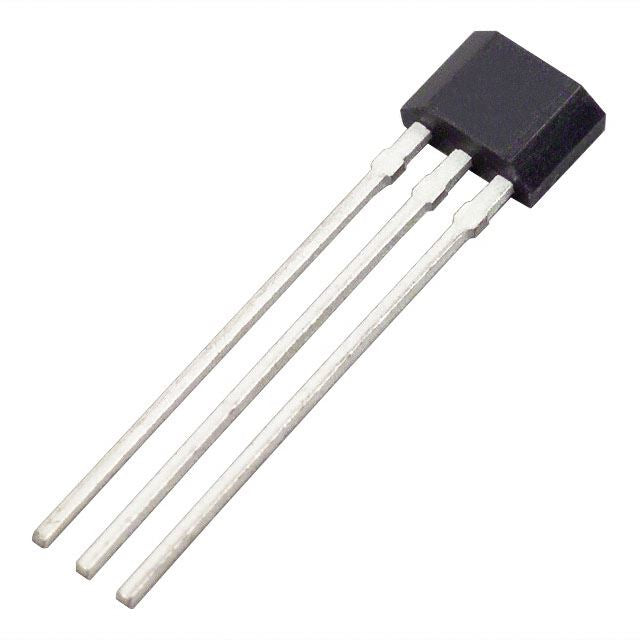

ZVN3306A MOSFET 60V 270mA N Channel TO-92

SKU 551633


33 in stock
Original price £1.28 - Original price £1.28
Original price
£1.28 Inc VAT
£1.28 - £1.28
Current price £1.28 Inc VAT

The ZVN3306A MOSFET Transistor is a 60V N-channel through hole resistor supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.

  • 60 Volt VDS
  • RDS(on) < 5Ohm
  • N Channel Enhancement Mode Vertical DMOS FET
  • MOSFET 60V 270mA TO-92
Back order lead time 5 Days
Continuous drain current 0.27A
Drain source on resistance
Drain source voltage 60V
Input capacitance 35pF
Maximum gate source voltage 2.4V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO92
Power dissipation 0.625W
Type N-Channel
