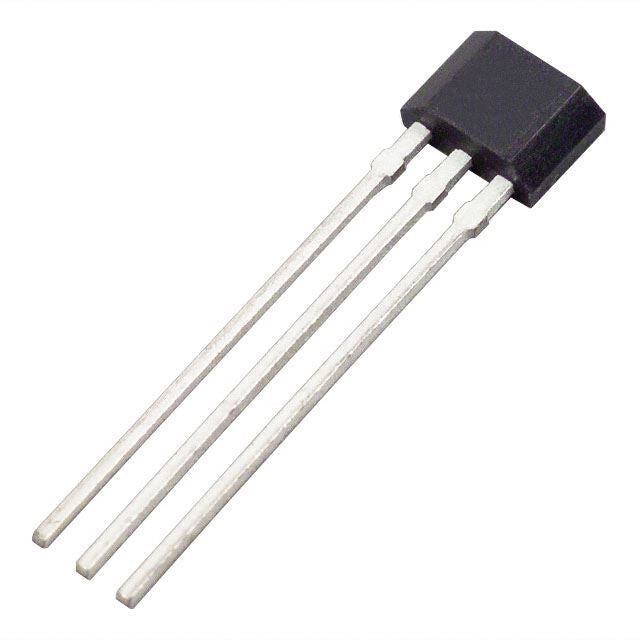

ZVNL120A MOSFET 200V 180mA N Channel TO-92

SKU 551637


Out of stock
Sold out
Original price £2.33 - Original price £2.33
Original price
£2.33 Inc VAT
£2.33 - £2.33
Current price £2.33 Inc VAT

The ZVNL120A MOSFET Transistor is a 200V 180mA N-channel through hole resistor supplied in TO-92 packaging. Suitable for telephone handsets. For further technical specifications please refer to the attached datasheet.

  • 200 Volt VDS
  • RDS(on) 10 Ohm
  • Low Threshold
  • N Channel Enhancement Mode Vertical DMOS FET
  • MOSFET 200V 180mA TO-92
Back order lead time 5 Days
Continuous drain current 0.18A
Drain source on resistance 10Ω
Drain source voltage 200V
Input capacitance 85pF
Maximum gate source voltage 1.5V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO92
Power dissipation 0.7W
Type N-Channel
