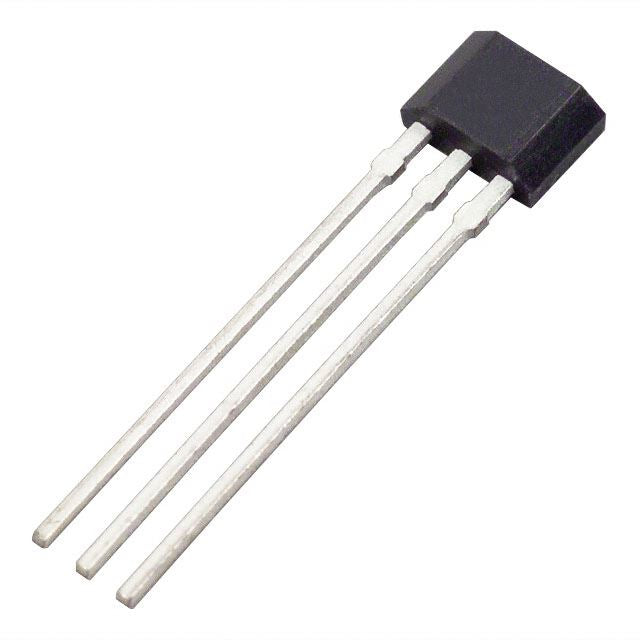

ZVP2106A MOSFET 60V 280mA P Channel TO-92
by Diodes Zetex
SKU 551638
MPN: ZVP2106A
Availability:
86 in stock
Original price
£2.37
-
Original price
£2.37
Original price
£2.37
£2.37
£2.37
-
£2.37
Current price
£2.37
The ZVP2106A MOSFET Transistor is a 60V 280mA P-channel through hole resistor supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.
- 60 Volt VDS
- RDS(on) 5 Ohm
- P Channel Enhancement Mode Vertical DMOS FET
- MOSFET 60V 280mA TO-92
Specification
| Back Order Lead Time | 5 Days |
| Continuous Drain Current | 0.28A |
| Drain Source On Resistance | 5Ω |
| Drain Source Voltage | 60V |
| Input Capacitance | 100pF |
| Maximum Gate Source Voltage | 3.5V |
| Maximum Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Package | TO92 |
| Power Dissipation | 0.7W |
| Type | P-Channel |
