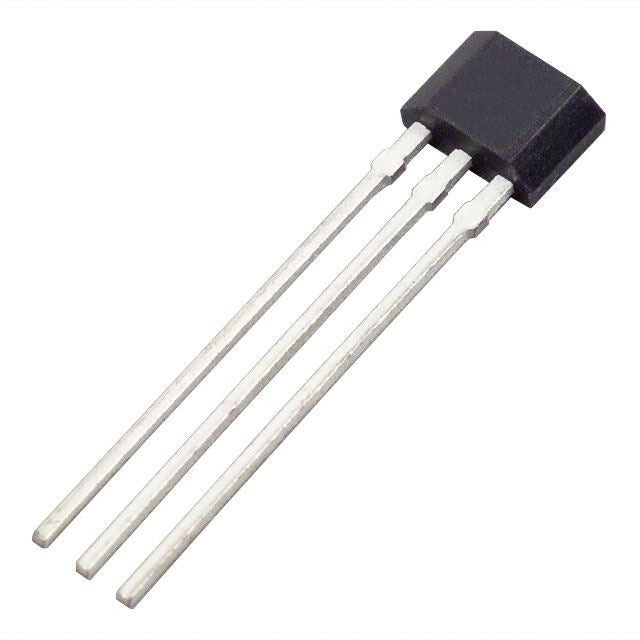

ZVP3306A MOSFET 60V 160mA P Channel TO-92
by Diodes Zetex
SKU 551640
MPN: ZVP3306A
Availability:
Out of stock
Sold out
Original price
£1.08
-
Original price
£1.08
Original price
£1.08
Inc VAT
£1.08
-
£1.08
Current price
£1.08
Inc VAT
The ZVP3306A MOSFET Transistor is a 60V 160mA P-channel through hole resistor supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.
- 60 Volt VDS
- RDS(on) 14 Ohm
- P Channel Enhancement Mode Vertical DMOS FET
- MOSFET 60V 160mA TO-92
Specification
| Back order lead time | 5 Days |
| Continuous drain current | 0.16A |
| Drain source on resistance | 14Ω |
| Drain source voltage | 60V |
| Input capacitance | 50pF |
| Maximum gate source voltage | 3.5V |
| Maximum operating temperature | 150°C |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 0.625W |
| Type | P-Channel |
